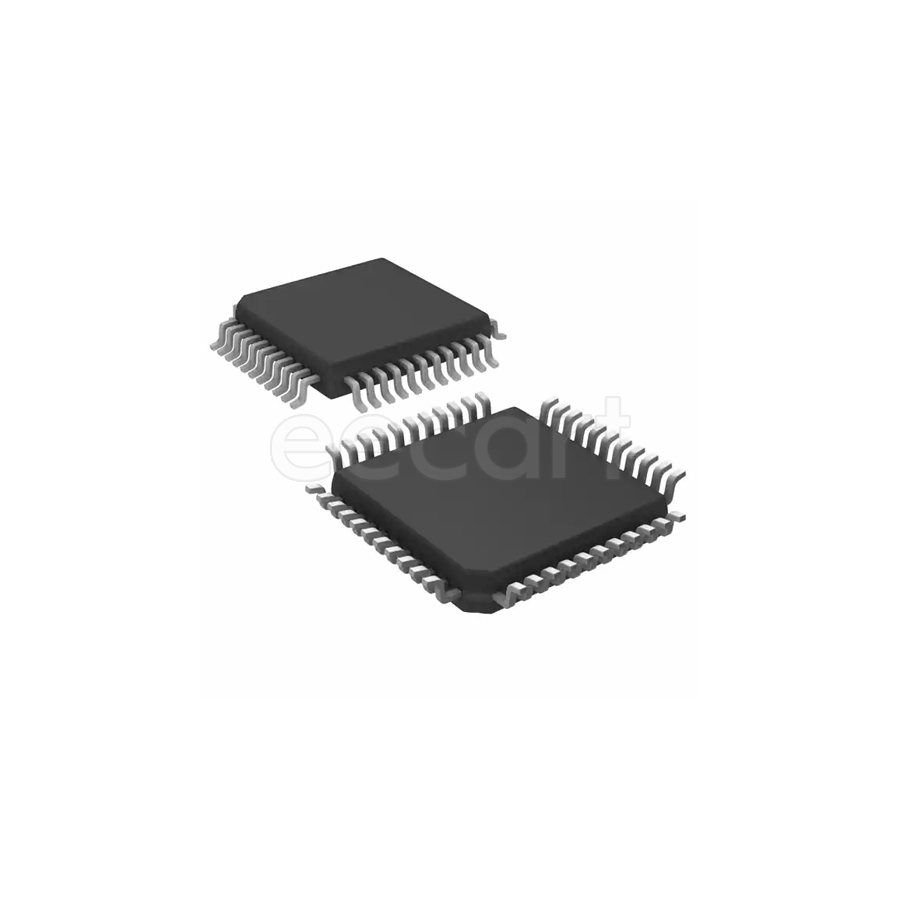

AD7864BSZ-1
Manufacturer:
Analog Devices
Mfr.Part #:
AD7864BSZ-1
Datasheet:
Description:
Analog to Digital Converters (ADCs) MQFP-44 SMD/SMT number of channels:4 Number of Inputs:4 1.5 B 520 ksps Core Architecture:SAR
| Parameter | Value |
|---|---|
| Length | 10.2 mm |
| Width | 10.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Height | 2.2 mm |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bipolar |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Features | Simultaneous Sampling |
| Number of Elements | 1 |
| Interface | Parallel |
| Min Input Voltage | 2.375 V |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 120 mW |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Power Dissipation | 120 mW |
| Number of Channels | 4 |
| Number of Bits | 12 |
| Number of Inputs | 4 |
| Supply Type | Analog, Digital |
| Max Input Voltage | 2.625 V |
| Sampling Rate | 520 ksps |
| Integral Nonlinearity (INL) | 0.5 LSB |
| Number of Converters | 1 |
| Nominal Supply Current | 24 mA |
| Number of Analog Inputs | 4 |
| power consumption | 90 mW |
| Resolution | 1.5 B |
| Number of A/D Converters | 1 |
| Signal to Noise Ratio (SNR) | 78 dB |
| Differential Nonlinearity | 0.9 LSB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 months ago) |
| Configuration | S/H-MUX-ADC |
| Ratio - S/H:ADC | 4:1 |
| Input Type | Single Ended |
| Interface Type(Data Interface) | Parallel |
| Analog Supply Voltage | 5 V |
| Max Digital Supply Voltage | 5 V |
| Core Architecture(core/core processor) | SAR |
| Reference Type | External, Internal |
Stock: 7
Distributors
pcbx
pcbxUnit Price$53.41927
Ext.Price$53.41927
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $53.41927 | $53.41927 |
| 10 | $45.94344 | $459.43440 |
| 25 | $42.66997 | $1066.74925 |
| 50 | $42.06051 | $2103.02550 |
| 100 | $41.45998 | $4145.99800 |
